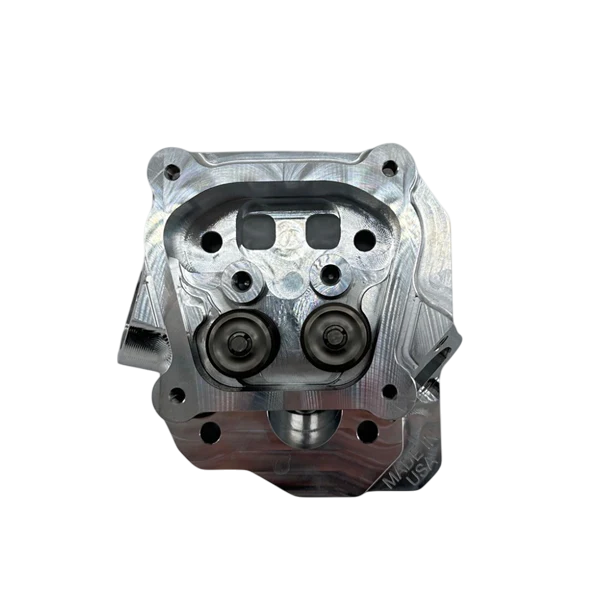

Billet Cylinder Head for Small Block GX160,200 & Clone Engines, With Big Valve
This billet head cylinder supports .500' lift with no modifications. Accepts all stock height components. Aftermarket pushrods and valve cover or spacer, and black venom rockers required.
MoFlow-1 by BlackMarkit
The new Moflow has been completely reworked to accept "bigger" valves, utilizing a 36mm intake valve and a 27mm exhaust. The valve spacing has been widened to safely accommodate the larger valves, along with the rocker stands to keep everything lined up. The intake bolts have been changed from the 43mm spacing to a wider 46mm spacing to allow for the bigger port. Material added on the spark plug side head bolts to move the bolt pattern if needed for larger bores. Long 3.100" stainless valves with Comp Cams GP965 springs and Titanium retainers.
Must use billet valve cover or valve cover spacer for clearance. Must use Blackmarkit intake (found here) or modify intake for 46mm spacing. Recommend 1/4" x 5.5" pushrods (length may vary, depending on rockers). Designed to be used with Gage Motorsports Black Venom rocker arms.
- Designed for 3" bore (2.98" chamber)
- 15cc chamber (methanol or gas)
- 3.100" stainless valves
- Comp Cams GP965 springs
- Titanium retainers
- Wider valve spacing
- Wider rocker spacing
- Wider intake bolt pattern (46mm)
- Improved Intake and Exhaust port Design.
- Extra Material to move head bolts (extreme builds)
Manifolds designed for this head
Intake Flow at 28"
$249.90
Original: $714.00
-65%Billet Cylinder Head for Small Block GX160,200 & Clone Engines, With Big Valve—
$714.00
$249.90Billet Cylinder Head for Small Block GX160,200 & Clone Engines, With Big Valve
